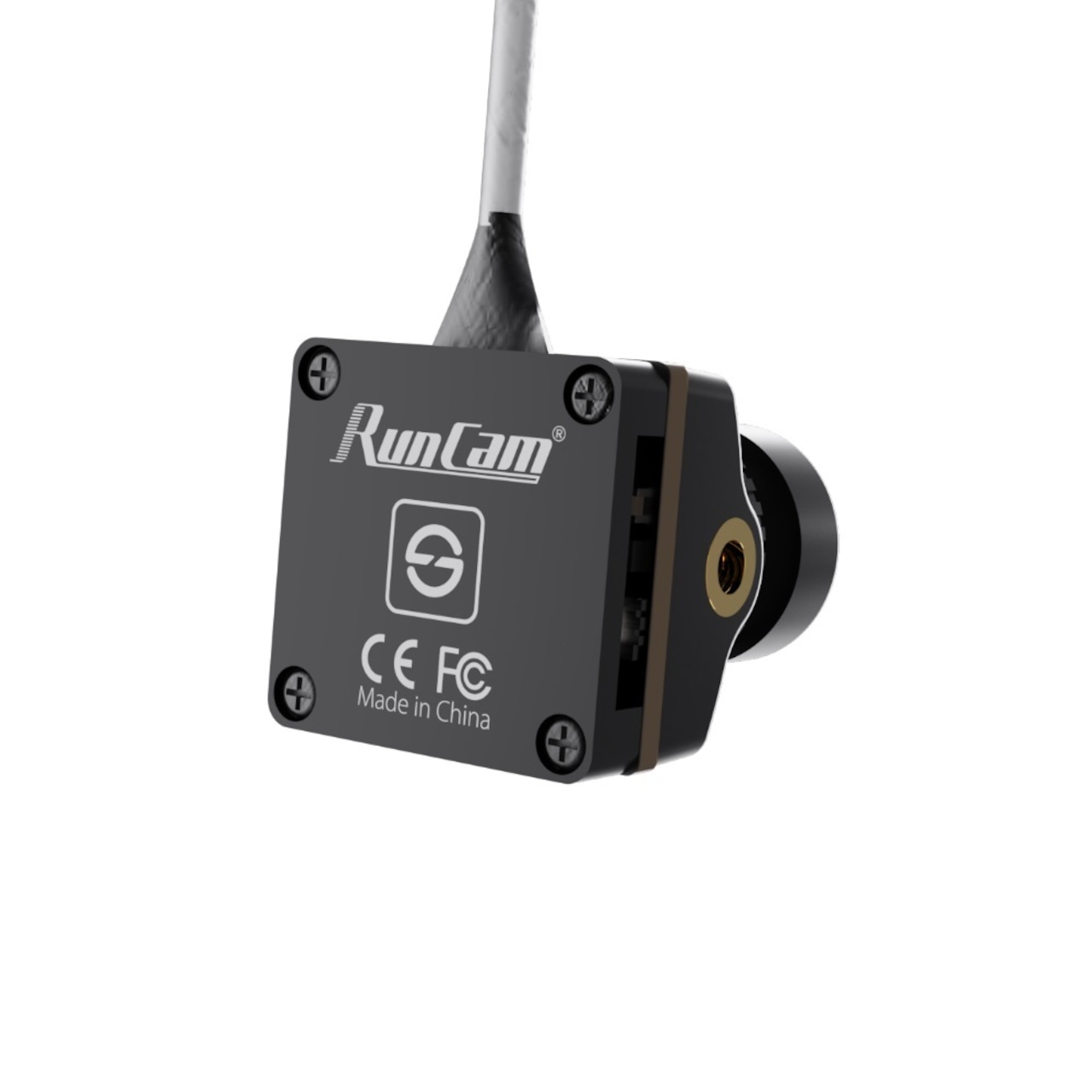

RunCam Split 4 V2

SOLD OUT

SPLIT 4 4K高解像度録画/低遅延FPV 2 IN 1
4K 30FPS 2.7K 60 FPS & FPV カメラ / 低遅延 (平均 55MS) / ワイド電圧 (5-20V)
FPV アスペクト比 16:9/4:3 切り替え可能 / ビデオファイルの電源オフ保護 / UART 制御

簡単インストール
レンズモジュールサイズ（14*14mm）
PCB取り付け穴間隔（25.5*25.5mm）
GyroFlowサポート

Parameters
Model Split 4
Image Sensor SONY 13MP
Field of View(FOV) 140°
Video Resolution 4K@30fps/2.7K@60fps/2.7K@50fps/1080P@60fps
Video File Format MP4
TV Mode NTSC (720*480)/PAL (720*576) Switchable
Interface UART
Max Micro SD Card Supported Max. 128GB
SAMSUNG 128GB U3 recommended (2.7K60/2.7K50/1080P120 requires U3 or above; other solutions require U1 or above)
Please make sure that the file format of the SD card is exfat, otherwise, it will easily cause errors.
Power Input DC 5-20V (Non-direct power supply from battery,Powered direcly with battery will generate surges and burn the camera.)
Lens Module Size 14*14mm
Mounting Hole Distance 25.5*25.5mm
PCB Size 29*29mm
Working Current MAX 450mA @5V
Weight 10.2g
